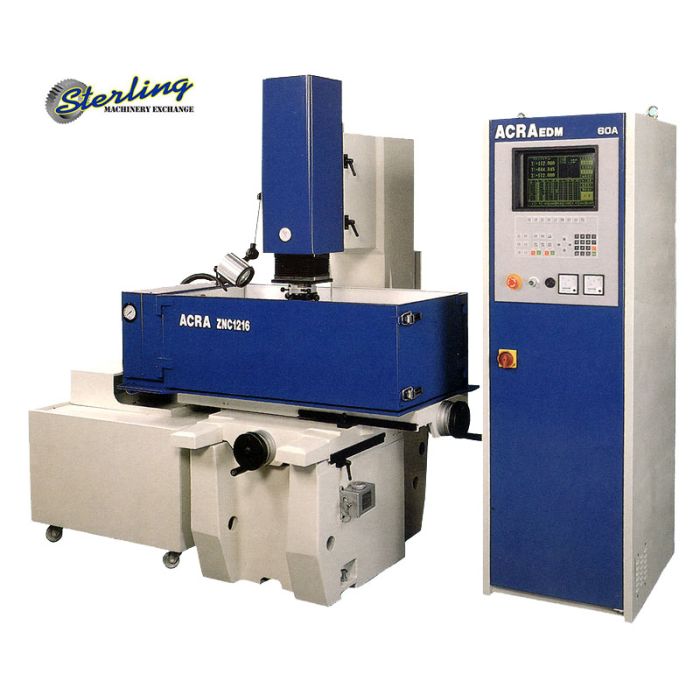

60 Amp acra EDM1216, New #SMEDM1216
Machine Type:
EDM MACHINES
Manufacturer:
Acra
Model:
EDM1216
Capacity:
60 Amp
Condition:
New
Stock No:
#SMEDM1216
DETAILED SPECIFICATION
| Work Tank Capacity | 44" x 24" x 16" |
| Work Table Dimensions | 28" x 18" |
| Longitudinal Travel | 16" |
| Cross Travel | 12" |
| Spindle Travel | 8" |
| Headstock Travel | 10" |
| Amps | 60 |
| Input Rating | 7 KVA |
| Maximum Processing Speed | 6 G/MIN |
| Electrode Wear Ratio | 0.25% |
| Maximum Programming Capacity | 500 Blocks |
| Minimum D.R.O. Resolution | 0.0002" |
| Maximum D.R.O. Distance | 99.9999" |
| Fluid Tank Capacity | 380L |
| Horsepower | |
| Voltage | 220V AC ~ 3 Phase |
Features
Fire Protection Device
Tool Box
Dielectric Level Control Device
Sleep Device
Memory Device Even Power Failure
The Coordinate Value, Machining Condition And Machining Time Could Be Indicated Clearly In The Monitor
500 Blocks Of Program Sequence Make The Rough Edming-Middle Edming-Fine Finishing Could Be Accomplished Simply By One Step
2 Steps Servo Speed System Specially For Deep Hole Machining Assure High Precision Performance
Coolant System
Automatic Monitor Protection Device
Automatic Anti-Arc Device
Work Head
Clamping Set
Filters
Work Light
DISTRIBUTOR OF THE YEAR AWARD
* Temporary specifications subject to verification.
