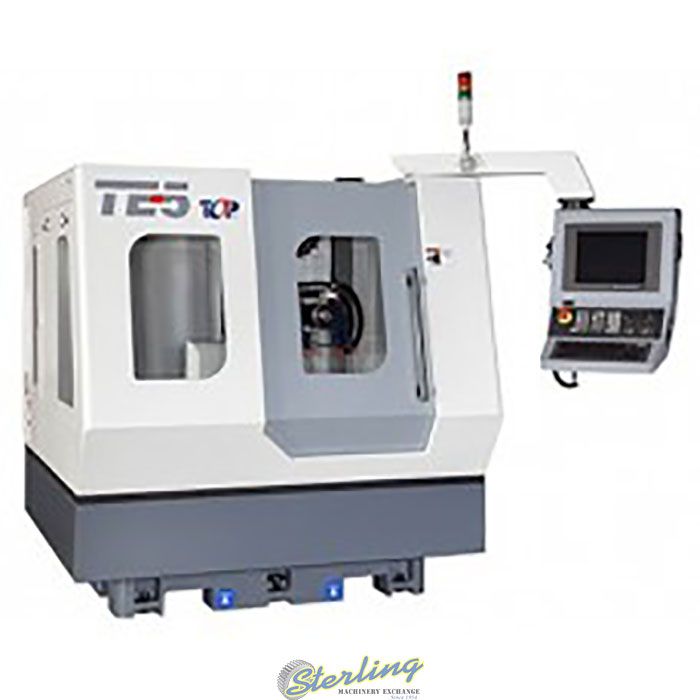

9" x 8" x 9" atrump TE-5, New #SMTE5
Machine Type:
GRINDERS
Manufacturer:
Atrump
Model:
TE-5
Capacity:
9" x 8" x 9"
Condition:
New
Stock No:
#SMTE5
DETAILED SPECIFICATION
| Capacity | 9" x 8" x 9" |
| Tool Data | |
| Maximum Working Length | 3.9" |
| Maximum Workpiece Diameter | 7.8" |
| Grinding Spindle Speed | 100 - 9000 rpm |
| Grinding Spindle Motor | 5 H.P. |
| Maximum Grinding Wheel Diameter | 5.9" |
| Work Head | |
| Spindle Taper | BT50 |
| Clamping System | 6 kg (80psi) |
| Min. Work Head Graduation | 0.001 Degree |
| Mechanical Axes Travel | |
| X Axis | 9.4" |
| Y Axis | 8.6" |
| Z Axis | 9.8" |
| A Axis | -20 Degrees - +200 Degrees |
| C Axis | ∞ |
| Rapid Traverse of X/Y Axis | 393 inch/min |
| Rapid Traverse of Z Axis | 314 inch/min |
| Rapid Traverse of A Axis | 15 RPM |
| Rapid Traverse of C Axis | 100 rpm |
| Linear Resolution | 3.9" x 10^-5 |
| Radial Resolution | 0.001 Degree |
| Axis Motor & Coolant System | |
| X/Y/Z Axis Servo Motor | 2 H.P. |
| C/A Axis Servo Motor | 1 H.P. |
| Coolant Motor | 2 H.P. |
| Lubrication Pump | 25 W |
| Coolant Capacity | 60 Gallons |
| Controller | |
| Model | IPC with Siemens |
| Number of Control Axes | 5 Axis (X,Y,Z,C,A) |
| Power Requirements | 15 KVA 3 Phase 208V to 230V (Max) |
| Dimensions (L x W x H) | 88" x 74" x 98" |
| WEIGHT | 8820 lbs |
| Warranty | One Year Limited Warranty |
Features
IPC With Siemens 840D 5-Axis Controller
ISO 9001 Quality Assurance
3-Dimensional Model Simulation System
Heavy Duty Linear Slide Way
FC30 Meehanite Casting Main Frame
C3 Precision Ball Screws Hardened & Ground For Higher Accuracy And Long Lasting
Auto Lubrication System
Standard Way Cover On 3 Axes
Central Lubrication System
GUTS Grinding Software
Coolant System
Oil & Mist Separators
Halogen Lamp
Oil Coolant System
Cooler Unit For Oil Coolant System
Portable Hand Wheel
Built In Quartz Work Light
Full Enclosure & Splash Guard
BT50 Test Bar
Plug Gauge BT50 For Grinding Wheel Dressing
Plug Gauge BT50 For Presetter Measurement
Leveling Bolts & Blocks
Pressure Dust Container With Filter
Plug Gauge For Measurement Machine Reference Points
Pneumatic Collet Holder
Tool Box/Adjusting Tool
OPTIONAL EQUIPMENT AND TOOLING
Name: Atrump - Toolsetting/Touch Probes
Price: Call For Price
Stock No:# CALLFORPART#-4
ADD TO MACHINE QUOTE:
* Temporary specifications subject to verification.
All quotations subject to prior sale.
New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
