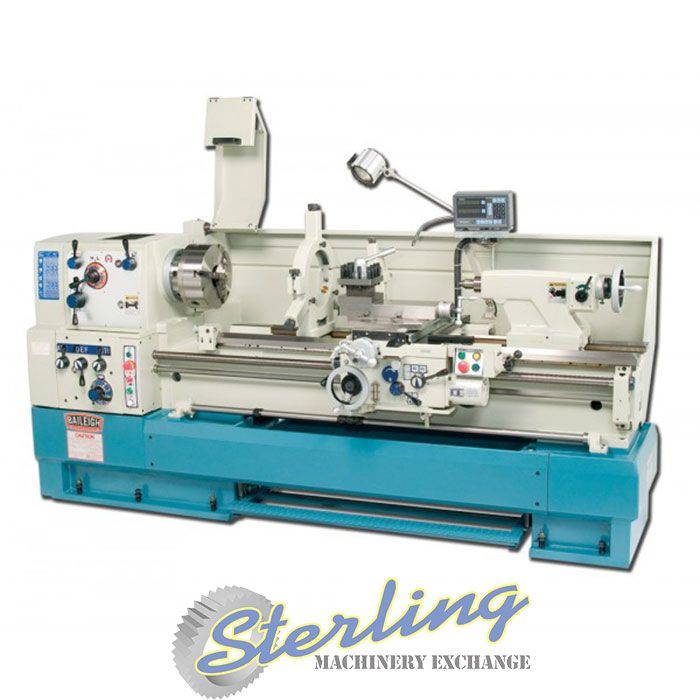

20" x 60" baileigh PL-2060, New #SMPL2060
Machine Type:
LATHES
Manufacturer:
Baileigh
Model:
PL-2060
Capacity:
20" x 60"
Condition:
New
Stock No:
#SMPL2060
DETAILED SPECIFICATION
| Capacity | |
| Maximum Swing Over Bed | 20" |
| Maximum Swing Over Cross Slide | 13" |
| Maximum Swing in Gap | |
| Diameter | 26.375" |
| Length | 7.0625" |
| Center | |
| HEIGHT | 10" |
| Length | 60.25" |
| Bed | |
| Width | 16.125" |
| Spindle | |
| Bore | 3.125" |
| Nose | D1 - 8" |
| Taper (Nose) | Morse #7 |
| Taper (Sleeve) | Morse #5 |
| Speeds | |
| Number | 12 |
| Range | 20 - 1550 rpm |
| Cross Slide | |
| Travel | 12.5" |
| Compound Rest | |
| Travel | 10" |
| Lead Screw | |
| Diameter | 1.5" |
| Thread | 4 TPI |
| Feed Rod | 0.708" Diameter |
| Cutting Tool (Maximum Section) | 0.625" x 0.625" |
| Threads | |
| Imperial (Quantity / Type) | 60 / 2 - 112 TPI |
| Metric (Quantity / Type) | 60 / 0.2 - 14 mm Pitch |
| Diametrical (Quantity / Type) | 50 / 4 - 112 D.P. |
| Module (Quantity / Type) | 50 / 0.2 - 7 M.P. |
| Longitudinal Feeds | |
| Imperial (Quantity / Speed) | 50 / 0.0014" - 0.0387"/rev. |
| Metric (Quantity / Speed) | 50 / 0.037 - 0.983 mm/rev. |
| Cross Feeds | |
| Imperial (Quantity / Speed) | 50 / 0.0007" - 0.01935"/rev. |
| Metric (Quantity / Speed) | 50 / 0.0185 - 0.52 mm/rev. |
| Tailstock | |
| Diameter | 2.9375" |
| Travel | 6.3125" |
| Taper | Morse #5 |
| Coolant Motor | 1/8 H.P. |
| Main Motor | 15 H.P. |
| Power Requirement | 220V / 3-Phase |
| Dimension (L x W x H) | 121" x 54" x 67" |
| WEIGHT | 5456 lbs |
Features
Mitutoyo 2 Axis DRO
12 Step Spindle Speed
12" 3 Jaw Chuck
Rear Splash Guard
Halogen Work Light
Integrated Coolant System
Headstock Chuck Guard With Micro Switch Cutout
Steady & Follow Rest
4 Way Quick Change Tool Post With Guard
Longitudinal Rapid Traverse
Micrometer Saddle Stop
4 Longitudinal Feed Stops
8" Back Plate
220V / 3-Phase
* Temporary specifications subject to verification.
