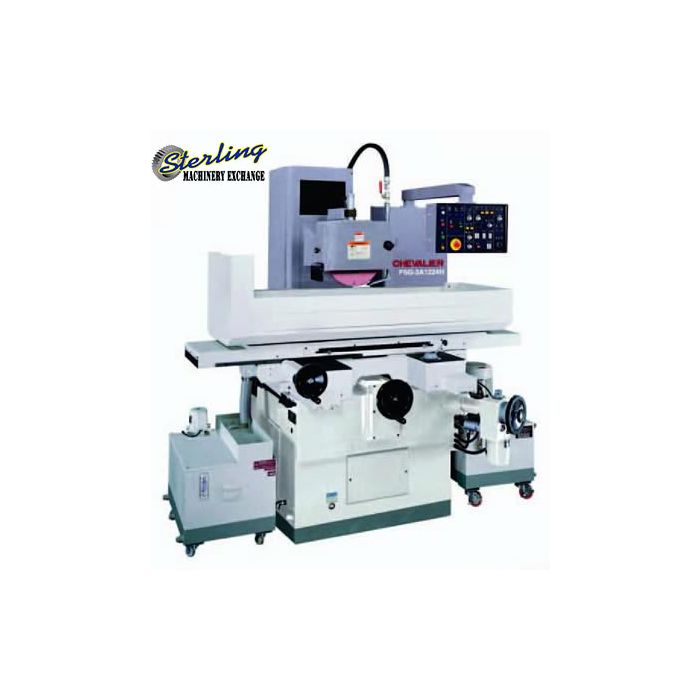

16" x 13" chevalier FSG-3A1224, New #SMFSG3A1224
Machine Type:
GRINDERS
Manufacturer:
Chevalier
Model:
FSG-3A1224
Capacity:
16" x 13"
Condition:
New
Stock No:
#SMFSG3A1224
DETAILED SPECIFICATION
| Table Size | 12" x 24" |
| Max. Grinding Length | 24" |
| Max. Grinding Width | 12" |
| Max. Distance From Table Surface to Spindle Centerline | 24-3/4" |
| Longitudinal Movement of Table | |
| Hydraulic | 25-5/8" |
| Manual | 27-1/2" |
| Table Speed | 16 - 82 FPM |
| Rapid Travel | 56 FPM |
| Crossfeed Handwheel | |
| Per Revolution | 0.2" |
| Per Graduation | 0.001" |
| Downfeed Handwheel | |
| Per Graduation | 0.0005" |
| Per Revolution | 0.0001" |
| Power Rating (Horse Power) | |
| Hydraulic Drive | 2 H.P. |
| Crossfeed Drive | 0.05 H.P. |
| Elevating Drive | 1/4 H.P. |
| Grinding Wheel Size (Dia. x Width x Bore) | 14" x 1.97" x 5" |
| Total Rated Power (H.P.) | 10 H.P. |
| Voltage | 230V ~ 3 Phase |
| Dimensions (L x W x H) | 107" x 72" x 80" |
| WEIGHT | 4,700 Lbs. |
Features
Auto Lubrication
3 Axis Fully Automatic Feed
Tool Box & Tools
Plunge Grinding Cycle
Diamond Dresser With Diamond
Hand Scrapped Turcite-B Used On Z- And Z-Axes
One Grinding Wheel & Hub
Hydraulic System
Splash Guard & Nozzle
Balancing Arbor
Microdown Feed Device (0.0001")
Operation Manual
Leveling Screws, Nuts & Pads
OPTIONAL EQUIPMENT AND TOOLING
Name: Chevalier - Electromagnetic Chuck Controller with Variable Holding Power & Demagnitizer
Price: Call For Price
Stock No:# B23-0602
ADD TO MACHINE QUOTE:
Name: Chevalier - Installation Charge - Single Axis
Price: Call For Price
Stock No:# INSTALL1AXIS
ADD TO MACHINE QUOTE:
Name: Chevalier - Installation Charge - Double Axis
Price: Call For Price
Stock No:# INSTALL2AXIS
ADD TO MACHINE QUOTE:
Name: Chevalier - Balancing Stand (Roller Type)
Price: Call For Price
Stock No:# B15-0601
ADD TO MACHINE QUOTE:
Name: Chevalier - Heavy Duty Dust Collector
Price: Call For Price
Stock No:# B17-0102D
ADD TO MACHINE QUOTE:
Name: Chevalier - Coolant System (24 gal)
Price: Call For Price
Stock No:# B17-0901D
ADD TO MACHINE QUOTE:
Name: Chevalier - Chevalier Electromagnetic Chuck (11-3/4" x 23-5/8" x 2-3/4")
Price: Call For Price
Stock No:# B09-0401
ADD TO MACHINE QUOTE:
Name: Chevalier - Coolant System with Paper Filter (30 g)
Price: Call For Price
Stock No:# B17-0301D
ADD TO MACHINE QUOTE:
Name: Chevalier - Coolant System with Paper Filter & Magnetic Separator (30 g)
Price: Call For Price
Stock No:# B17-0302F
ADD TO MACHINE QUOTE:
Name: Chevalier - Exhaust Hood (MUST be ordered with Dust Collector)
Price: Call For Price
Stock No:# 0901-00058002
ADD TO MACHINE QUOTE:
Name: Chevalier - Fagor Digital Readout System - Elevating Digital Readout 24"L (Factory Install)
Price: Call For Price
Stock No:# BL45-0109-F1Y
ADD TO MACHINE QUOTE:
Name: Chevalier - Crossfeed & Elevating Digital Readout
Price: Call For Price
Stock No:# BL45-0111-F2
ADD TO MACHINE QUOTE:
Name: Chevalier - Parallel Dressing Attachment (Manual)
Price: Call For Price
Stock No:# B13-0902
ADD TO MACHINE QUOTE:
Name: Chevalier - Parallel Dressing Attachment (Hydraulic)
Price: Call For Price
Stock No:# B13-0401
ADD TO MACHINE QUOTE:
Name: Chevalier - Balancing Stand with Leveling Bubble
Price: Call For Price
Stock No:# B15-0301
ADD TO MACHINE QUOTE:
Name: Chevalier - Variable Spindle Speeds by AC Frequency Control (230V) (Factory Install)
Price: Call For Price
Stock No:# BL48-0105
ADD TO MACHINE QUOTE:
Name: Chevalier - Variable Spindle Speeds by AC Frequency Control (460V) (Factory Install)
Price: Call For Price
Stock No:# BL48-0106
ADD TO MACHINE QUOTE:
Name: Chevalier - Double Side Water Baffle
Price: Call For Price
Stock No:# B19-0910
ADD TO MACHINE QUOTE:
Name: Chevalier - LED Machine Lamp
Price: Call For Price
Stock No:# B01-0906
ADD TO MACHINE QUOTE:
Name: Chevalier - Extra Wheel Flange & Weights
Price: Call For Price
Stock No:# B05-0401
ADD TO MACHINE QUOTE:
Additional Information
Chevalier Machinery is the US branch company of Falcon Machine Tools, a Taiwanese-based machine tool manufacturer with branches and agents in Europe, the Middle East, Mainland China, South America and the U.S. Established in 1978.
This series has been specially developed and improved in recent years
in order to continuously offer you reliable high performance precision
surface grinders. And as a guarantee of that reliability we offer one
year limited-warranty including parts for mechanical and electrical
components. The Double-V crossfeed guideway span has been designed
applying kinematics to calibrate minimum bending movements to achieve
maximum support capability for table and workpiece. All of high-grade
cast iron that is stress-relieved by annealing to ensure superior stability
and rigidity. An interlock has been placed between the electrical cabinet
door and power supply as an added safety feature. The maximum
distance from table surface to spindle centerline is 630mm(24.8") which
provides more space for grinding.
* Temporary specifications subject to verification.
All quotations subject to prior sale.
New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
