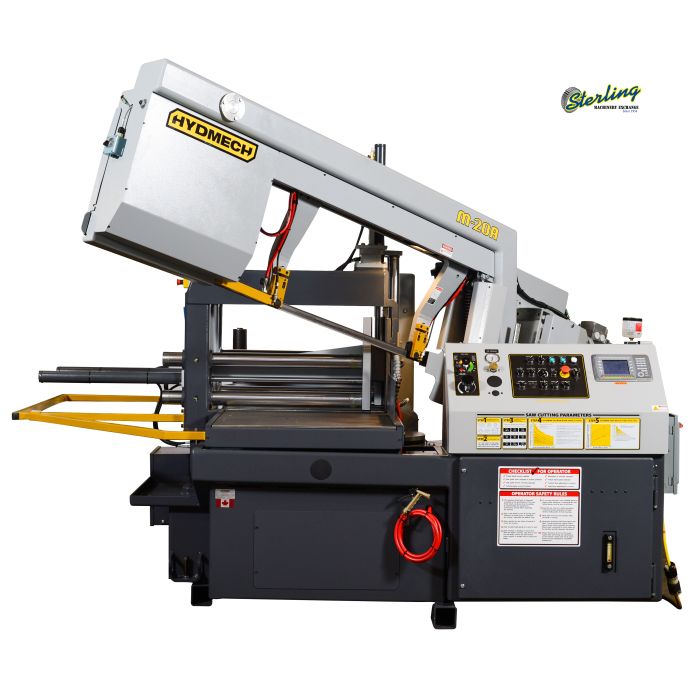

20" x 30" hydmech M-20A, New #SMM20A
Machine Type:
SAWS
Manufacturer:
HYDMECH
Model:
M-20A
Capacity:
20" x 30"
Condition:
New
Stock No:
#SMM20A
Call For Price
DETAILED SPECIFICATION
| Capacity | 20" x 30" |
| Operation Type | Automatic |
| Horsepower | 5 HP |
| Blade Speed | 50 - 350 SFM |
| 30 Degrees | |
| 30 Degree Round | 14" |
| 30 Degree Rectangle | 12" x 20" |
| 45 Degrees | |
| 45 Degree Round | 20" |
| 45 Degree Rectangle | 19" x 20" |
| 90 Degrees | |
| 90 Degree Round | 20" |
| 90 Degree Rectangle | 20" x 30" |
| Work Load Capacity | 8000 lbs |
| Coolant Tank Capacity | 9 Gallons |
| Table Height | 32" |
| Warranty | 2 Year Parts & 1 Year Labor |
| Horsepower | 10 HP VFD |
| Voltage | 208/240/480/575V |
| Dimensions (L x W x H) | 90" x 129" x 110" |
Features
True Direct Blade Drive - No Belts, No Pulleys
Replaceable Blade Brush
Automatic Programmable Mitering With "Go To" Angle Functionality
Full Capacity, Full Stroking Hydraulic Vises
Automatic Multi-Indexing Up To 33" In Single Stroke
Steel Guide Arms Mounted On Linear Rails
Easy Access Electrical Panel & Hydraulics
Blade Chamber Separates Material From Cut Part
Hydraulic Band Tensioning
Hydraulically Powered Idler Side Guide Arm Is Adjustable
Cast-Iron Band Wheels
Automatic Chip Removal Auger
Hydraulic Positive Down Feed
Made In The USA!
Automatic PLC Control, Programmable Up To 99 Jobs With 5 In Queue
Robust Steel Base
Blade Breakage Switch
Hardened, Replaceable Wear Plates On Material Vises
Work Light
Safety Door Interlocks
Hydraulic Carbide Guide Tensioning
Laser Light
Flood Coolant With Wash Down Hose
OPTIONAL EQUIPMENT AND TOOLING
Name: Hydmech - Pneumatic Clutch (Powered Conveyor)
Price: Call For Price
Stock No:# 18092000
ADD TO MACHINE QUOTE:
Name: Hydmech - Filler Plates - for 5' Conveyor (Idler & Powered Conveyors)
Price: Call For Price
Stock No:# 18099091
ADD TO MACHINE QUOTE:
Name: Hydmech - Filler Plates - for 10' Conveyor (Idler & Powered Conveyors)
Price: Call For Price
Stock No:# 18099092
ADD TO MACHINE QUOTE:
Name: Hydmech - Coolant Drip Pan - for 5' Conveyor (Idler & Powered Conveyors)
Price: Call For Price
Stock No:# 18099084
ADD TO MACHINE QUOTE:
Name: Hydmech - Coolant Drip Pan - for 10' Conveyor (Idler & Powered Conveyors)
Price: Call For Price
Stock No:# 18099083
ADD TO MACHINE QUOTE:
Name: Hydmech - Vertical Alignment Roller (Idler & Powered Conveyors)
Price: Call For Price
Stock No:# 18099080
ADD TO MACHINE QUOTE:
Name: Hydmech - Fork Lift Cut Outs (Idler & Powered Conveyors)
Price: Call For Price
Stock No:# 18099095
ADD TO MACHINE QUOTE:
Name: Hydmech - Chip Bucket
Price: Call For Price
Stock No:# 14020030
ADD TO MACHINE QUOTE:
Name: Hydmech - Outboard Vise
Price: Call For Price
Stock No:# 13030035
ADD TO MACHINE QUOTE:
Name: Hydmech - Outboard Vise with Full Capacity Hydraulic Overhead Bundling
Price: Call For Price
Stock No:# 13030038
ADD TO MACHINE QUOTE:
Name: Hydmech - Out of Stock Switch
Price: Call For Price
Stock No:# 12010081
ADD TO MACHINE QUOTE:
Name: Hydmech - Remote Console
Price: Call For Price
Stock No:# REMOTECONSOLE
ADD TO MACHINE QUOTE:
Name: Hydmech - Vertical Rollers
Price: Call For Price
Stock No:# 12010025
ADD TO MACHINE QUOTE:
Name: Hydmech - Blade Deviation Monitor
Price: Call For Price
Stock No:# 130150308
ADD TO MACHINE QUOTE:
Name: Hydmech - Full Capacity Hydraulic Overhead Bundling - 2 Vises
Price: Call For Price
Stock No:# 12010005
ADD TO MACHINE QUOTE:
Name: Hydmech - Mist Lubrication System
Price: Call For Price
Stock No:# 12010060
ADD TO MACHINE QUOTE:
Name: Hydmech - Variable Vise Pressure
Price: Call For Price
Stock No:# 12010020
ADD TO MACHINE QUOTE:
Name: Hydmech - 5' In Feed/Out Feed Idler Conveyor (36"W x 31"H)
Price: Call For Price
Stock No:# 18020361
ADD TO MACHINE QUOTE:
Name: Hydmech - 10' In Feed/Out Feed Idler Conveyor (36"W x 31"H)
Price: Call For Price
Stock No:# 18020362
ADD TO MACHINE QUOTE:
Name: Hydmech - 5' In Feed/Out Feed Powered Conveyor (36"W x 31"H)
Price: Call For Price
Stock No:# 18020363
ADD TO MACHINE QUOTE:
Name: Hydmech - 10' In Feed/Out Feed Powered Conveyor (36"W x 31"H)
Price: Call For Price
Stock No:# 18020364
ADD TO MACHINE QUOTE:
Name: Hydmech - Additional 10' Slave Section
Price: Call For Price
Stock No:# 18099784
ADD TO MACHINE QUOTE:
* Temporary specifications subject to verification.
