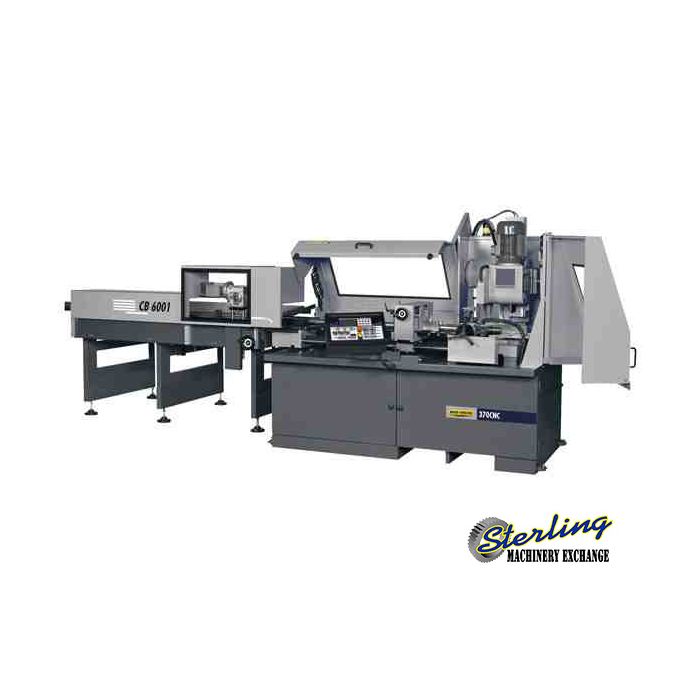

7" x 4" hydmech C370-2CNC, New #SMC3702CNC
Machine Type:
SAWS
Manufacturer:
HYDMECH
Model:
C370-2CNC
Capacity:
7" x 4"
Condition:
New
Stock No:
#SMC3702CNC
Call For Price
DETAILED SPECIFICATION
| Operation Type | Automatic |
| Blade Size | Min 12", Max 14-1/2" |
| 45 Degrees | |
| 45 Degree Square Tube | 4" Left & Right |
| 45 Degree Round Tube | 4-1/2" Left & Right |
| 45 Degree Rectangle Tube | 4-3/4" x 4" Left & Right |
| 45 Degree Square Solid | 2-3/4" Left & Right |
| 45 Degree Round Solid | 2-3/4" Left & Right |
| 45 Degree Rectangle Solid | 2-3/4" x 4" Left & Right |
| 60 Degrees | |
| 60 Degree Square Tube | 3-1/2" Left |
| 60 Degree Rectangle Tube | 3-1/2" x 3-1/2" Left |
| 60 Degree Square Solid | 2" Left |
| 60 Degree Round Solid | 2" Left |
| 60 Degree Rectangle Solid | 2" x 4" Left |
| 90 Degrees | |
| 90 Degree Square Tube | 4-1/4" |
| 90 Degree Round Tube | 4-3/4" |
| 90 Degree Rectangle Tube | 7" x 4" |
| 90 Degree Square Solid | 4-1/4" |
| 90 Degree Round Solid | 4-3/4" |
| 90 Degree Rectangle Solid | 7" x 4" |
| Standard Remnant Length | 10" |
| Short Remnant Option | 6.2" |
| Blade Speed | 15 - 150 RPM |
| Warranty | One Year Parts, One Year Labor |
| Horsepower | 7.5 HP |
| Voltage | 240/480V |
| Dimensions ( L x W x H ) | 69" x 97" x 75" |
| WEIGHT | 2350 lbs |
Features
Miter Capabilities - 45 Degrees Left/45 Degrees Right & 60 Degrees Left
Replaceable Blade Brush
Automatic Operation With Semi-Automatic Mode
Shuttle Features Automatic Multi-Indexing Up To 40"
Shuttle Feed Carriage Designed With Side Movement
Variable Speed From 15 - 150 RPM
Vertical Pneumatic Vise
Extended Jaws
Heavy Duty Sawing Head Movement Controlled By Electro Mechanic Cylinder
Flood Coolant With Electrical Coolant Pump
Blade Drive Coupled Directly To Saw Head
Pneumatic Operating Vise
Enclosed Steel Base With Chip Drawer & Coolant Tank
Ergonomically Positioned Control Panel With Emergency Stop, Programing Console, Digital Display For Machine Diagnostics & Cutting Parameters
Stores Up To 32 Jobs
One Blade Included
OPTIONAL EQUIPMENT AND TOOLING
Name: Hydmech - Mist Lubrication System
Price: Call For Price
Stock No:# 16421030
ADD TO MACHINE QUOTE:
Name: Hydmech - Automatic Chip Conveyor
Price: Call For Price
Stock No:# 16441020
ADD TO MACHINE QUOTE:
Name: Hydmech - HSS Oxide Coated Blade (370 x 3 x 32 z=140) - Alloy Heavy Wall Structure/Solid
Price: Call For Price
Stock No:# 164370140
ADD TO MACHINE QUOTE:
Name: Hydmech - HSS Oxide Coated Blade (370 x 3 x 32 z=200) - Multi Purpose
Price: Call For Price
Stock No:# 164370200
ADD TO MACHINE QUOTE:
Name: Hydmech - HSS Oxide Coated Blade (370 x 3 x 32 z=280) - Light Wall Tubing
Price: Call For Price
Stock No:# 164370300
ADD TO MACHINE QUOTE:
Name: Hydmech - HSS Oxide Coated Blade (370 x 3 x 32) - 5 Pack
Price: Call For Price
Stock No:# 164370200-5
ADD TO MACHINE QUOTE:
Name: Hydmech - CB-6001 Automatic Incline Loading Table (Ships in 3 Pieces, Capacity up to 20' Bars)
Price: Call For Price
Stock No:# 16452000
ADD TO MACHINE QUOTE:
Name: Hydmech - Second Pneumatic Horizontal Operating Vise
Price: Call For Price
Stock No:# 16423020
ADD TO MACHINE QUOTE:
Name: Hydmech - Bundle Jaws (CANNOT be used with CB 6001 due to interference)
Price: Call For Price
Stock No:# 16431060
ADD TO MACHINE QUOTE:
Additional Information
CB 6001 Automatic Incline Loading Table - Technical Specifications
90 Degree Minimum/90 Degree Maximum:
Round Tube - 3/4"/4" Square Tube - 3/4"/4" Rectangle Tube - 3" x 3/4"/5" x 4"
Round Solid - 3/4"/3" Square Solid - 3/4"/3" Rectangle Solid - 5" x 1/2"/5" x 1-1/2"
Table Width - 31" Maximum Load - 5000 lbs Weight - 1100 lbs
Dimensions (L x W x H) - 50" x 248" x 47"
* Temporary specifications subject to verification.
