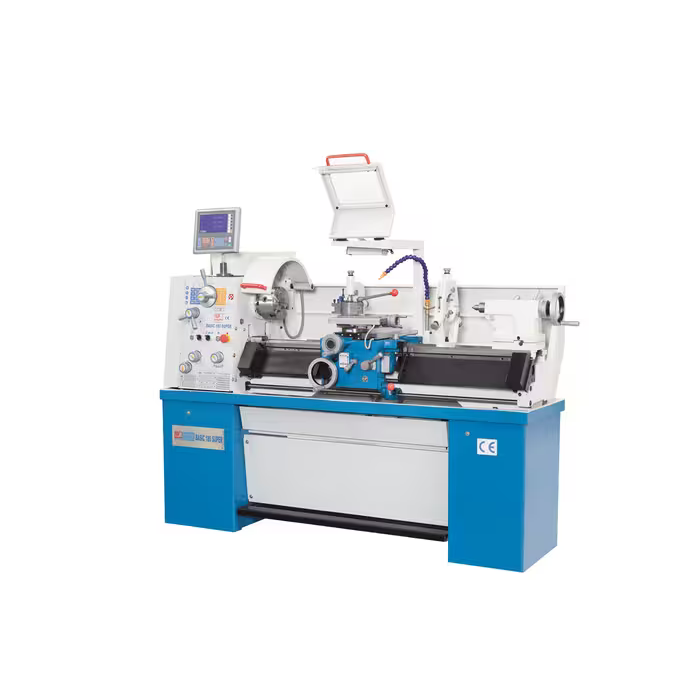

40" x 14" Knuth Basic 180 Super, New
Machine Type:
LATHES
Manufacturer:
Knuth
Model:
Basic 180 Super
Capacity:
40" x 14"
Condition:
New
Stock No:
#SMBASIC180SUPER
$15,685.00
DETAILED SPECIFICATION
| Center Width | 39.37" |
| Turning Diameter Over Bed | 14" |
| Turning-Ø Over Support | 9" |
| Bed Width | 8" |
| Travel X-axis | 7" |
| Travel Z1-axis | 4" |
| Swing Range of Top Slide | ± 50° |
| Spindle Speed | 45 Rpm - 1800 Rpm |
| Spindle Bore | 1.5 In |
| Spindle Mount | Camlock D1-4 |
| Spindle Taper | 5 MT |
| Feed X-axis | 0.00059 In/R - 0.00866 In/R |
| Feed Z-axis | 0.00169 In/R - 0.02571 In/R |
| Threading, Metric | (37) 0,4-7 Mm |
| Threading, Whitworth | (28) 4-56 TPI |
| Tailstock Quill Stroke | 2" |
| Tailstock Traverse Adjustment | ± 0.5 In |
| Motor Rating Main Drive | 3.2 Hp |
| Dimension | 77 In X 30 In X 62 In |
| WEIGHT | 1936 Lbs |
Features
3-axis position indicator, X.pos 3.2 VC
Quick change tool holder head WE
Quick change tool holder WED 20100
3-jaw chuck Ø 6"
4-jaw face plate chuck Ø 8"
Face plate Ø 11"
Steady And Follow Rests
Chip Tray
Thread gauge
Reducing Sleeve
Micrometer Stop
Dead Center
Protective shield for the toolpost
Chuck Guard
Foot brake pedal
Fixed splash guard (wall)
Work Light
Toolbox with operating tools
* Temporary specifications subject to verification.
All quotations subject to prior sale.
New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
