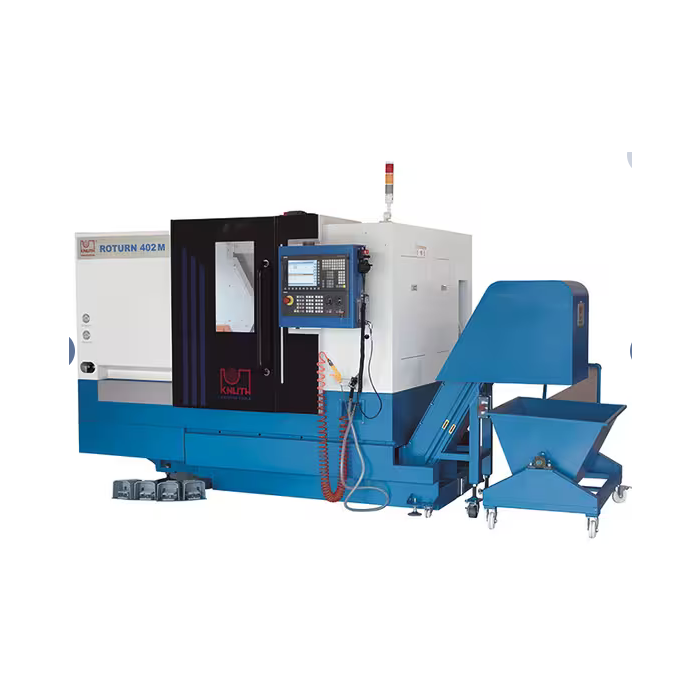

13" x 8" Knuth Roturn 400 M, New
Machine Type:
LATHES
Manufacturer:
Knuth
Model:
Roturn 400 M
Capacity:
13" x 8"
Condition:
New
Stock No:
#SMROTURN400M
Call For Price
DETAILED SPECIFICATION
| Workpiece Length (max.) | 13" |
| Center Height | 8" |
| Turning Diameter Over Bed | 16" |
| Turning Diameter Over Support | 10" |
| Machining Length (max.) | 13" |
| Travel X-axis | 5.9" |
| Travel Z-axis | 14" |
| Lathe Chuck Diameter | 8" |
| Speed Range | 50 Rpm - 3000 Rpm |
| Spindle Mount | A2-6 |
| Spindle Bore | 2.4" |
| Spindle Bore With Draw Tube | 1.9" |
| Rapid Feed X-Axis | 787.4 In/min |
| Rapid Feed Z-Axis | 984.25 In/min |
| Number of Tool Stations | 12 Positions |
| Tool Shank Dimensions | 0.8" X 0.8" |
| Boring Bar Mount Ø | 1.3" |
| Speed, Driven Tools | 3000 RPM |
| Tailstock Taper | 5 MT |
| Tailstock Quill Diameter | 3" |
| Tailstock Quill Stroke | 3" |
| Main Motor Rating | 15 / 11 Hp |
| Motor rating coolant pump | 0.2 Hp |
| Motor Rating, Driven Tools | 3 HP |
| Driven Tools, Continuous Load | 3.08 Hp |
| Dimension | 148" X 75" X 76" |
| WEIGHT | 8228 Lbs |
Features
Siemens 828 D Control
Hydraulic 3-jaw lathe chuck, Ø 200 mm with bore
Hydr. tailstock
Automatic Central Lubrication
Chain-type chip conveyor
Heat exchanger for electric control cabinet
Enclosed work space
LED Work Lamp
Coolant System
Compressed air gun
Coolant gun
Operating Tools
Operator Manual
12-station tool changer with driven tools
1 Driven tool holder, radial
1 Driven tool holder, axial
Rod loader interface
measuring cycles (6FC5800-0AP28-0YB0 )
* Temporary specifications subject to verification.
