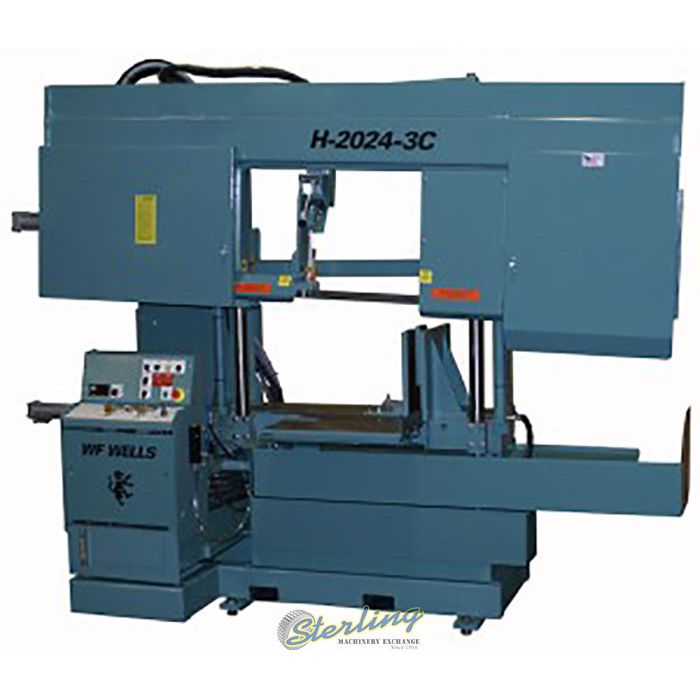

19-1/2" x 24" w.f. wells H-2024-3C, New #SMH20243C
Machine Type:
SAWS
Manufacturer:
W.F. Wells
Model:
H-2024-3C
Capacity:
19-1/2" x 24"
Condition:
New
Stock No:
#SMH20243C
DETAILED SPECIFICATION
| Capacity | 19-1/2" x 24" |
| 90 Degree Rectangle | 19-1/2" x 24" |
| Blade Size | 1-1/2" x .050" x 20'-0" |
| Blade Tension | Hydraulic |
| Blade Guide | Roller Guides with Carbide Inserts |
| Bandwheel Size | 22" |
| Vise | Manual or Full Stroke Hydraulic, 15" |
| Blade Speed | 60 - 500 SFPM |
| 90 Degrees | |
| Operation Type | Semi-Automatic |
| 90 Degree Round | 20" |
| Blade Drive | 10 H.P., AC Vector Drive |
| Horsepower | 10 H.P. |
| Voltage | 208/230/460/575V - 3 Phase |
| Dimensions (L x W x H) | 103" x 50" x 93" |
| Warranty | One Year Labor, 90 Day Parts |
| Electrics | Wired to NFPA 79 Machine Tool Standards |
| WEIGHT | 3900 lbs |
| Work Height | 35" |
| Sawing Force | 0 - 750 lbs |
| Coolant Capacity | 15 Gallons |
| Hydraulic Capacity | 20 Gallons |
| Hydraulic Drive | 2 H.P. Motor |
Features
1" Bi-Metal Blade
3 Degree Head Cant
Flood Coolant System
Double Column With Linear Bearings (For Maximum Capacity & Rigidity)
Semi-Automatic Cut Cycle (Note: Saw Frame Returns To "Top Position" Automatically)
Variable Blade Speed
Set Travel Up & Down (Can Be Set To Allow Notching Of Blocks)
Adjustable Feed Rate & Feed Force Control
Manual Saw Control
Carbide Spring Loaded Blade Guides
Full Guarding With Interlocks
Automatic End-of-Cut Shut Off
Manual Or Hydraulic Vise
Powered Blade Brush
Operator Manual & Parts List
OPTIONAL EQUIPMENT AND TOOLING
Name: W.F. Wells - Hydraulic Chip Conveyor (Auger Style)
Price: Call For Price
Stock No:# 0056036-0
ADD TO MACHINE QUOTE:
Name: W.F. Wells - High Speed Drive & Guides (1-1/4" Blade) 400 - 3000 SFPM
Price: Call For Price
Stock No:# 0051045-0
ADD TO MACHINE QUOTE:
Name: W.F. Wells - Hydraulic Powered Conveyor (21" x 10')
Price: Call For Price
Stock No:# 0056202-0
ADD TO MACHINE QUOTE:
Name: W.F. Wells - Powered Conveyor (24") (Pricing Available Upon Request)
Price: Call For Price
Stock No:# CONVEYOR
ADD TO MACHINE QUOTE:
* Temporary specifications subject to verification.
