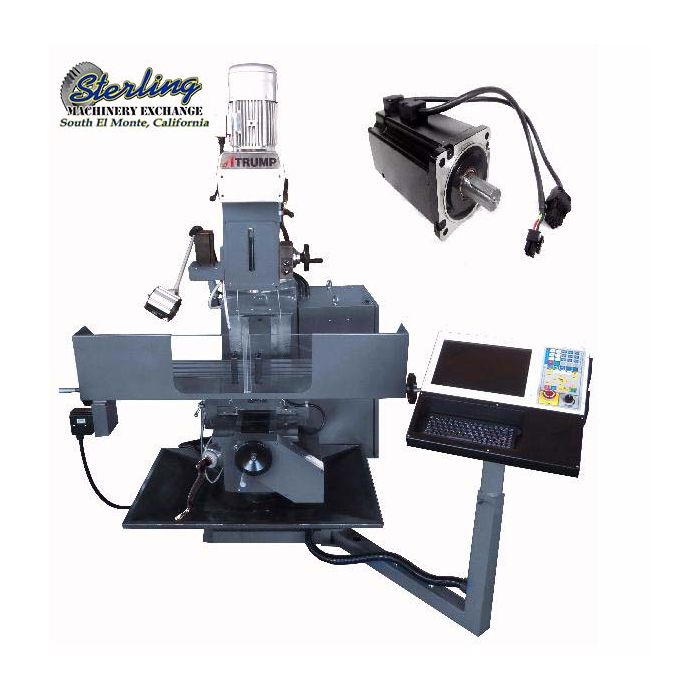

12" x 60" atrump 5NC 3-AXIS RIGID HEAD, New #SM5NC3AX
Machine Type:
MILLING MACHINES
Manufacturer:
Atrump
Model:
5NC 3-AXIS RIGID HEAD
Capacity:
12" x 60"
Condition:
New
Stock No:
#SM5NC3AX
DETAILED SPECIFICATION
| Table Size | 12" x 60" |
| Longitudinal Travel | 38" |
| Cross Travel | 16.5" |
| Spindle Quill Travel | 5.5" |
| Knee Travel | 16.5" (Manual) |
| Spindle Taper | # 40 |
| Spindle Speeds | 70 - 4,000 RPM |
| Spindle To Table | 2-1/4" ~ 21-3/4" |
| Spindle Center To Column Front Surface | 6-3/8" ~ 27" |
| Spindle Nose To Table Top | 2-1/4" to 21-3/4" |
| Quill Diameter | 4" |
| Controller | Centroid |
| CNC Axis | 3 Axis |
| Transmission Of Spindle & Motor | Timing Belt |
| Power Draw Bar | No |
| Speed Selector | Variable Speed |
| Load Capacity | 1000 LBS |
| Coolant Tank Capacity | 7 Gallons |
| Warranty | One Year Limited Warranty |
| Horsepower | 5 H.P. |
| Voltage | 208/230V - 3 Phase |
| WEIGHT | 4,580 Lbs. |
Features
Centroid M400I Control With 15" Color LCD
MPG 100 Steps Mounted On Head
Hard Limit Switch
RS-232 Interface
Precision APEC Class 7 Spindle Bearing To Ensure Spindle Runout Within 0.0002"
Anti-Rust Chrome Quill
Auto Lubrication System
FC30 Mechanite Castings Main Frame With Annealed And Stress Relieved For Long Term Reliability
Chip Tray
Hardened & Ground With Turcite-B Coating Guide Way
Coolant System
60 GB Solid State Hard Drive
USB 2.0 Port
Leveling Bolts & Plate
Standard Way Covers On All Three Axes
5 H.P. Spindle Motor, #40 Spindle Taper
Programmable 4000 Rpm Spindle Speed With Hi/Lo Gear
Tool Box W/Tools
Box Ways Design On Y & Z Axis To Provide Maximum Rigidity And Stability
Operation Manuals
OPTIONAL EQUIPMENT AND TOOLING
Name: Atrump - Software Unlimited Part Program Size
Price: Call For Price
Stock No:# 10630
ADD TO MACHINE QUOTE:
Name: Atrump - Intercon Offline Conversational Program Software (For Your Desktop PC) #10730
Price: Call For Price
Stock No:# 10730
ADD TO MACHINE QUOTE:
Name: Atrump - Coordinate System Rotation Software (CSR) #10850
Price: Call For Price
Stock No:# 10850
ADD TO MACHINE QUOTE:
Name: Atrump - Scaling and Mirroring G50 and G51 #10625
Price: Call For Price
Stock No:# 10625
ADD TO MACHINE QUOTE:
Name: Atrump - DXF In Cad Drawing Input Software #10814
Price: Call For Price
Stock No:# 10814
ADD TO MACHINE QUOTE:
Name: Atrump - Engraving Software #10740
Price: Call For Price
Stock No:# 10740
ADD TO MACHINE QUOTE:
Name: Atrump - 6" Angle Vise with Swivel Base (Import)
Price: Call For Price
Stock No:# VISE-6-0
ADD TO MACHINE QUOTE:
Name: Atrump - Chip Pan (Aone Knee Mill)
Price: Call For Price
Stock No:# CHIP-A1
ADD TO MACHINE QUOTE:
Name: Atrump - Installation of Power Draw Bar
Price: Call For Price
Stock No:# PDB-MAX-L
ADD TO MACHINE QUOTE:
Name: Atrump - 6" Riser Block for Aone 4VK/5VK
Price: Call For Price
Stock No:# RB6-A1-4V
ADD TO MACHINE QUOTE:
Name: Atrump - CAT40 Tool Holder Package (16 Pieces)
Price: Call For Price
Stock No:# CAT40-TOOL16
ADD TO MACHINE QUOTE:
Name: Atrump - 52pcs Clamping Kit Slot: 5/8" (16mm) stud: 1/2-13
Price: Call For Price
Stock No:# CK-001-0
ADD TO MACHINE QUOTE:
Name: Atrump - Mist Coolant System
Price: Call For Price
Stock No:# CP-MIST-0
ADD TO MACHINE QUOTE:
Name: Atrump - Power Draw Bar (Maxi-Torque) Installed
Price: Call For Price
Stock No:# PDB-MAX-1
ADD TO MACHINE QUOTE:
Name: Atrump - Z Axis Scale Feedback for 3RD Quill Axis
Price: Call For Price
Stock No:# QUILL-Z-0
ADD TO MACHINE QUOTE:
Name: Atrump - Table Guard (Aone Knee Mill)
Price: Call For Price
Stock No:# TG-A1
ADD TO MACHINE QUOTE:
Name: Atrump - Transformer: 18 H.P. (14KVA) for 440 - 480V input power
Price: Call For Price
Stock No:# TRAN-14KVA
ADD TO MACHINE QUOTE:
* Temporary specifications subject to verification.
