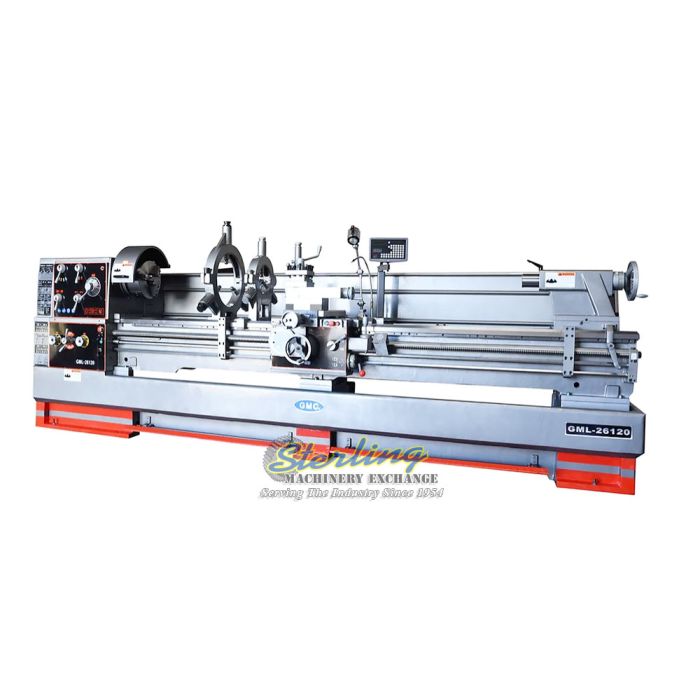

26"/34" x 80" gmc GML-2680, New #SMGML2680
Machine Type:
LATHES
Manufacturer:
GMC
Model:
GML-2680
Capacity:
26"/34" x 120"
Condition:
New
Stock No:
#SMGML2680
DETAILED SPECIFICATION
| Capacity | 26” x 80" |
| Swing Over Bed | 26" |
| Length of Work Piece | 80" |
| Swing Over Cross Slide | 17-1/4” |
| Swing in Gap | 35-3/8” |
| Width Of Bed | 16" |
| Gap to Spindle | 9" |
| Gap to Chuck Jaws | 6" |
| Spindle Bore | 4-1/8" / D1-8 |
| Taper of Spindle Center | M.T.# 5 |
| Spindle Speeds | 25-1,600 rpm / 16 steps |
| Longitudinal Feeds | 0.0016-0.055 IPR, 25 kinds |
| Cross Feeds | 0.0008-0.027 IPR, 25 kinds |
| Inch Threads | 80-7/16 TPI, 54 kinds |
| Metric Threads | 0.45-120 mm , 54 kinds |
| Module Threads | 0.25-60mm, 46 kinds |
| Diametral Pitch Threads | 7/8-160 DP , 42 kinds |
| Top Slide Travel | 9" |
| Cross Slide Travel | 14-1/2” |
| Spindle length w/o chuck | 20-1/2” |
| Diameter of Tail Stock Quill | 3-1/2” |
| Travel of Tail Stock Quill | 9-1/4” |
| Taper of Tail Stock Quill Center | MT#5 |
| Rapid Traverse Motor | 1HP, 220V or 440V, 3 phase |
| Coolant Pump Motor | 1/8 HP, 220V, or 440V, 3 phase |
| Voltage | 220/440V ~ 3 Phase |
| Dimension (L x W x H) | 187” x 46” x 72” |
Features
ISO 9001 Certified
12" 3-Jaw Chuck With Top Reversible Jaws
Spindle Nose 4-1/8"
4 Way Rapid Traverse
Foot Brake
20" 4-Jaw Chuck With Reversible Jaws
4 Way Tool Post
24" Face Plate
Tool Box
Thread Chasing Dial
4-3/4" - 10-1/4" Large Steady Rest With Roller Jaws
Taper Turning Attachment (Installed)
1" - 3" Follow Rest
Halogen Work Light
Coolant System
Oil Pump On Apron For All Guideways & Leadscrews
2 Dead Centers & 1 Reducing Sleeve
Removable Gap
10" Drive Plate
One Year Industrial Warranty For Parts
Adjustable Mechanical Spindle Clutch
All Dual Inch/Metric Dials
Solid Cast Iron Machine Base
Automatic Lubrication System In Headstock & Feed Box
* Temporary specifications subject to verification.
All quotations subject to prior sale.
New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
