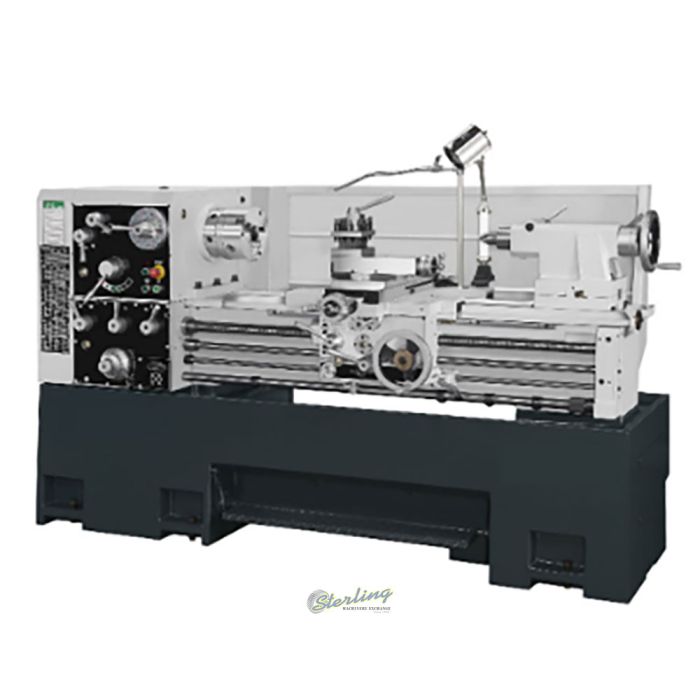

21" x 118" atrump LS-21120I, New #SMLS21120I
Machine Type:
LATHES
Manufacturer:
Atrump
Model:
LS-21120i
Capacity:
21" x 118"
Condition:
New
Stock No:
#SMLS21120I
DETAILED SPECIFICATION
| Swing Over Bed | 21.25” |
| Swing Over Cross Slide | 14.17" |
| Swing Over Gap | OPT: 28.34” |
| Distance Between Centers | 118.11" |
| Width Of Bed | 13.77" |
| Cross Slide Travel (X Axis) | 12.99" |
| Top Slide Travel | 5.90" |
| Spindle Motor | 3.34" (85mm |
| Spindle Bore | H: 331-1500RPM |
| Spindle Speed | M: 93-330RPM |
| INVERTER TYPE 3 STEP SPEED | L: 20-92RPM |
| Auto Change By PLC Control | D1-8 |
| Spindle Nose | 4 - 56 TPI (36Kinds) |
| Range of Inch Threads | 0.5 -7mm (24Kinds) |
| Range of Metric Threads | 0.00236 To 0.03464 In/rev |
| Range of Longitudinal Feed | 0.00118 To 0.01732 In/rev |
| Tailstock Quill Taper | M.T#5 |
| Tailstock Quill Travel | 6.69” |
| Tailstock Quill Diameter | 2.95” |
| Coolant Pump | 1/8 HP |
| Power Required | 9KVA |
| WEIGHT | 5940LBS |
Features
10HP main drive motor
4-Way Tool Post
Dead Center M.T.No.4 X 2pcs
Rapid foot brake
Led Work Light
Center sleeve MT6xMT4
Complete Electric Control Unit
Toolbox and kits
Coolant System
One piece Floor stand
OPTIONAL EQUIPMENT AND TOOLING
Name: Atrump - 90 Degree Live Drill
Price: Call For Price
Stock No:# S25DRILL
ADD TO MACHINE QUOTE:
Name: Atrump - Slot Mill Tool
Price: Call For Price
Stock No:# S25 MILL
ADD TO MACHINE QUOTE:
Name: Atrump - Chip Conveyor
Price: Call For Price
Stock No:# S25 CHIP CONVEYOR
ADD TO MACHINE QUOTE:
Name: Atrump - Rigid & Compression Tapping Software (G74 & G84)
Price: $550.00
Stock No:# 10810
ADD TO MACHINE QUOTE:
Name: Atrump - Printed Manual - Centroid Control
Price: $88.00
Stock No:# 10249
ADD TO MACHINE QUOTE:
* Temporary specifications subject to verification.
All quotations subject to prior sale.
New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
