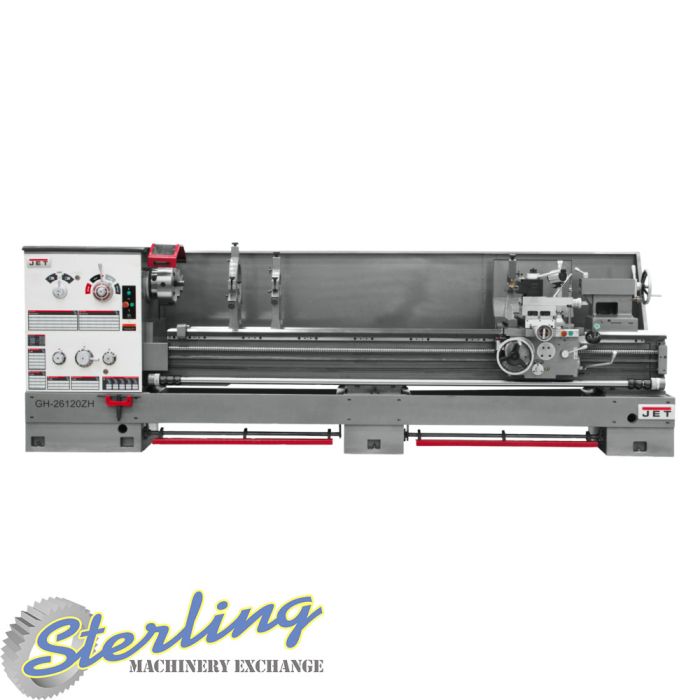

26" x 120" jet GH-26120ZH SERIES, New #SMGH26120ZH
Machine Type:
LATHES
Manufacturer:
Jet
Model:
GH-26120ZH SERIES
Capacity:
26" x 120"
Condition:
New
Stock No:
#SMGH26120ZH
DETAILED SPECIFICATION
| Capacity | 26" x 120" |
| Style Type | Engine - Large Spindle Bore |
| Drive Type | Geared Head |
| Swing Over Bed | 26" |
| Swing Over Cross Slide | 16-1/2" |
| Swing Through Gap | 34" |
| Length of Gap | 8" |
| Distance Between Centers | 120" |
| Spindle Bore | 4-1/8" |
| Spindle Mount | D1-8 |
| Spindle Taper (w/Sleeve) | MT5 |
| Number Of Spindle Speeds | 12 |
| Spindle Speed Range | 36 - 1600 RPM |
| Number of Longitudinal & Cross Feed Rates | 65 |
| Range of longitudinal feeds | 0.0023 - 0.0937 IPR |
| Range of Cross Feeds | 0.0040 - 0.0404 IPR |
| Number of Inch Threads | 48 |
| Range of Inch Threads | 2 - 30 TPI |
| Number of Metric Threads | 22 |
| Range of Metric Threads | 1 - 14 |
| Maximum Tool Size | 1-1/4" x 1-1/4" |
| Compound Slide Travel | 5-1/2" |
| Carriage Travel | 108-1/4" |
| Tailstock Spindle Travel | 6" |
| Taper in Tailstock Spindle | MT5 |
| Follow Rest Capacity | 25/32" - 3-5/16" |
| Steady Rest Capacity | Small: 25/32" - 4-29/32" |
| Width Of Bed | 16" |
| Horsepower | 10 HP |
| Prewired Voltage | 230V |
| Voltage | 230/460V ~ 3 Phase |
| Dimensions (L x W x H) | 178" x 43" x 57" |
| WEIGHT | 9362 lbs |
Features
Face Plate
Spindle Nose 4-1/8"
Clutch Operated Headstock With All Headstock Gears Hardened & Ground
Meehanite Casting
Universal Gearbox Allows Inch, Metric, Diametrical & Module Pitch Threads. No Change Gears Required
Bed Ways Are Induction Hardened & Ground
Micro-Carriage Bed Stop
Heavy Duty Tailstock & Quill
Full Length Splash Guard
LED Work Lamp
Rapid Power Traverse To Cross Slide & Carriage
Siemens Electrics
12" 3-Jaw Scroll Chuck With Top Reversing Jaws
Follow Rest
2 Steady Rests With Roller Bearings
Drive Plate
5 Piece Quick Change Tool Post Set
Large Capacity Steady Rest With Ball Bearing Tips
Fully Integrated Coolant System
Large Easy To Use Foot Brake
Electronic Chuck Key Holder
Fitted Top Mats To Hold Tooling
E-Stop On Carriage For Added Safety
OPTIONAL EQUIPMENT AND TOOLING
Name: Jet - Taper Attachment
Price: Call For Price
Stock No:# 321120/321893/321864
ADD TO MACHINE QUOTE:
Name: Jet - with Accu-Rite 200S DRO
Price: Call For Price
Stock No:# 321892
ADD TO MACHINE QUOTE:
Name: Jet - with Accu-Rite 200S DRO & Taper Attachment
Price: Call For Price
Stock No:# 321895
ADD TO MACHINE QUOTE:
Name: Jet - with Accu-Rite 300S DRO
Price: Call For Price
Stock No:# 321896
ADD TO MACHINE QUOTE:
Name: Jet - with Newall DP700 DRO
Price: Call For Price
Stock No:# 321891
ADD TO MACHINE QUOTE:
Name: Jet - with Newall DP700 DRO & Taper Attachment
Price: Call For Price
Stock No:# 321894
ADD TO MACHINE QUOTE:
* Temporary specifications subject to verification.
